Vehicle-mounted/trench electronic warfare (EW)

Contra-drone 10 (200-1020МHz, 2000-2750МHz, 5725-5850MHz)

Stock status: instock

543200

-
+
Get a consultation
WE CAN CUSTOMIZE THE MODULE, FREQUENCY RANGE, ANTENNAS, AND OTHER TECHNICAL SPECIFICATIONS ACCORDING TO YOUR REQUEST

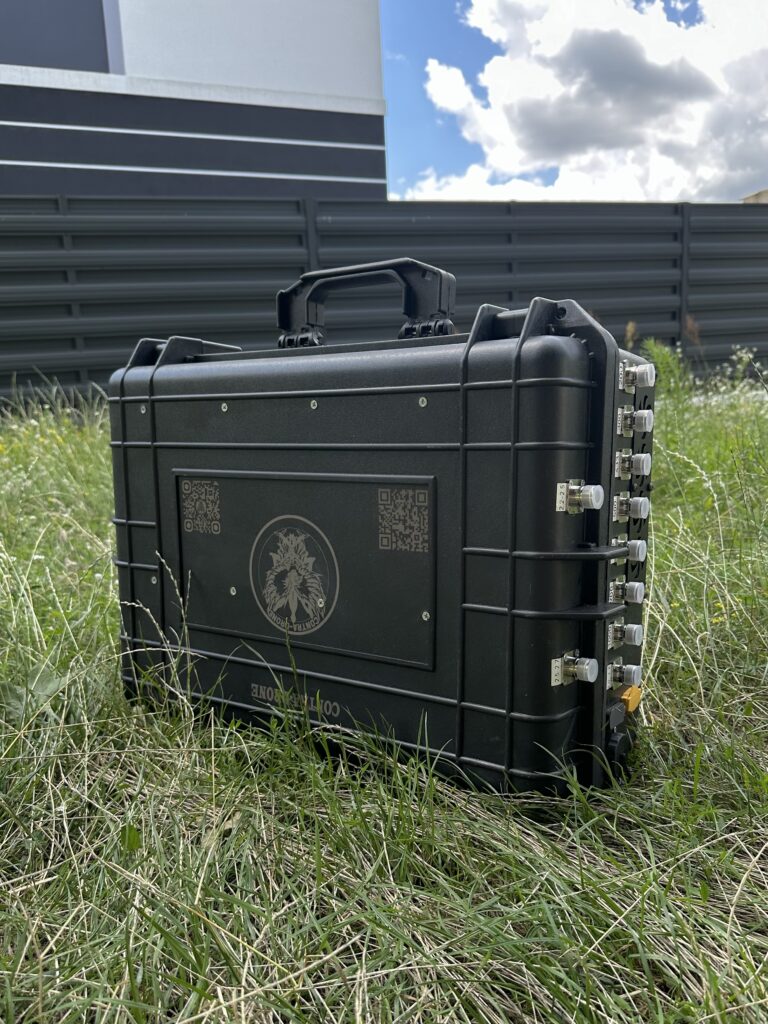

Trench (automobile) electronic warfare (EW) system, an innovative complex with the highest level of protection against UAVs, including multi-channel suppression, as well as protection against drops.
Covers the band in the range 200-1020MHz, 2000-2750MHz, 5725-5850MHz.

The price of the product is approximate and may be adjusted depending on the volume of the order and the terms of cooperation. To obtain the exact cost, contact the manager.

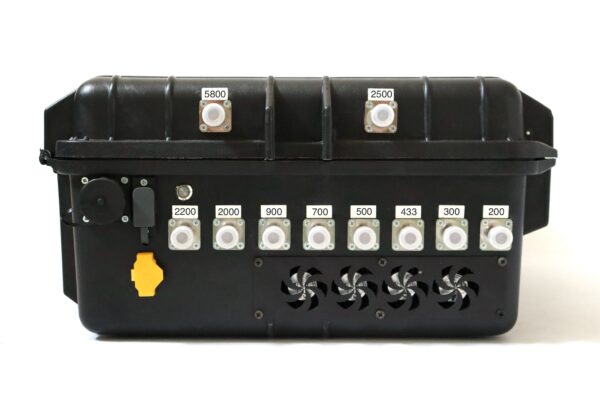

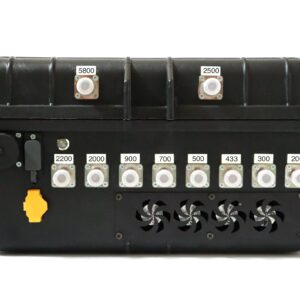

Number of channels: 10 (200МHz)(300МHz)(433МHz)(500МHz)(700МHz)(900МHz)(2000МHz)(2200МHz)(2500МHz)(5800MHz)

Frequency range: (200-300МHz)(300-400МHz)(400-500МHz)(500-650МHz)(700-860МHz)(860-1020МHz)(2000-2200МHz)(2200-2500МHz)(2500-2750МHz)(5725-5850MHz)

Power supply: built-in battery 24v / external power source with a capacity of at least 105Ah

Cooling: Active

Casing: Military-grade plastic

Weight: 20 kg empty system (including clamps and battery weight 25 kg)

Package includes: Device, 10 antennas, 10 antennas stand, external power cable, remote control for power on/off (vehicle-powered with clamps)

Antenna type: quadrifilar and omni/clover silver plated

Operating range: 200-300m

Module power: 200МHz - 50w; 300МHz - 50w; 433МHz - 50w; 500МHz - 50w; 700МHz - 50w; 900МHz - 50w; 2000МHz - 100w; 2200МHz - 100w; 2500МHz - 100w; 5800MHz - 50w

Total power: 650w

Power consumption: 150-2450w/h

Battery life at maximum power: up to 1 hour

Device

1 unit

Antenna

10 unit

Antenna stand

10 unit

External power cable

1 unit

Remote control for power on

1 unit

Off (vehicle-powered with clamps)

1 unit

Transport packaging

1 unit
