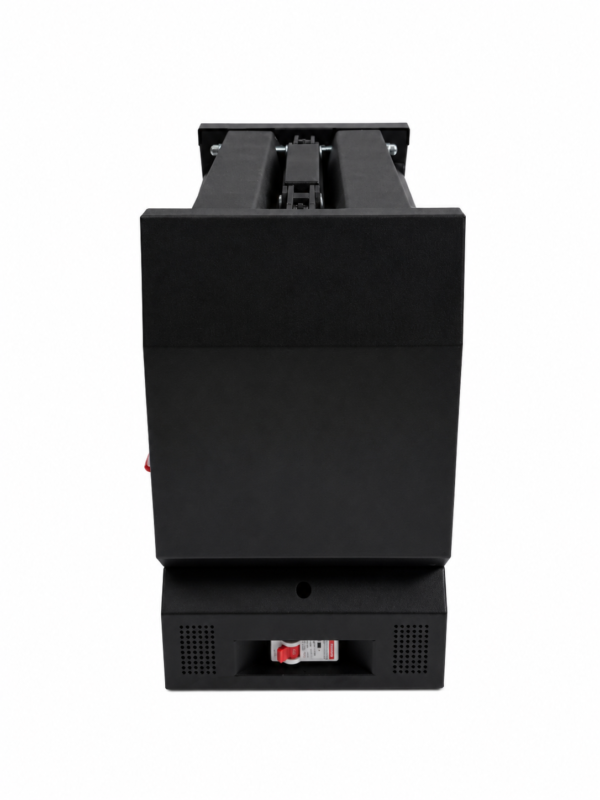

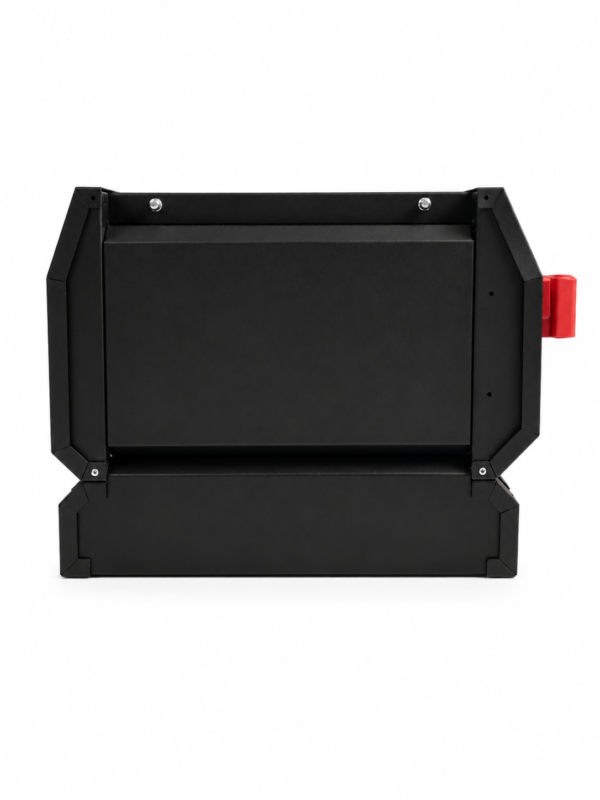

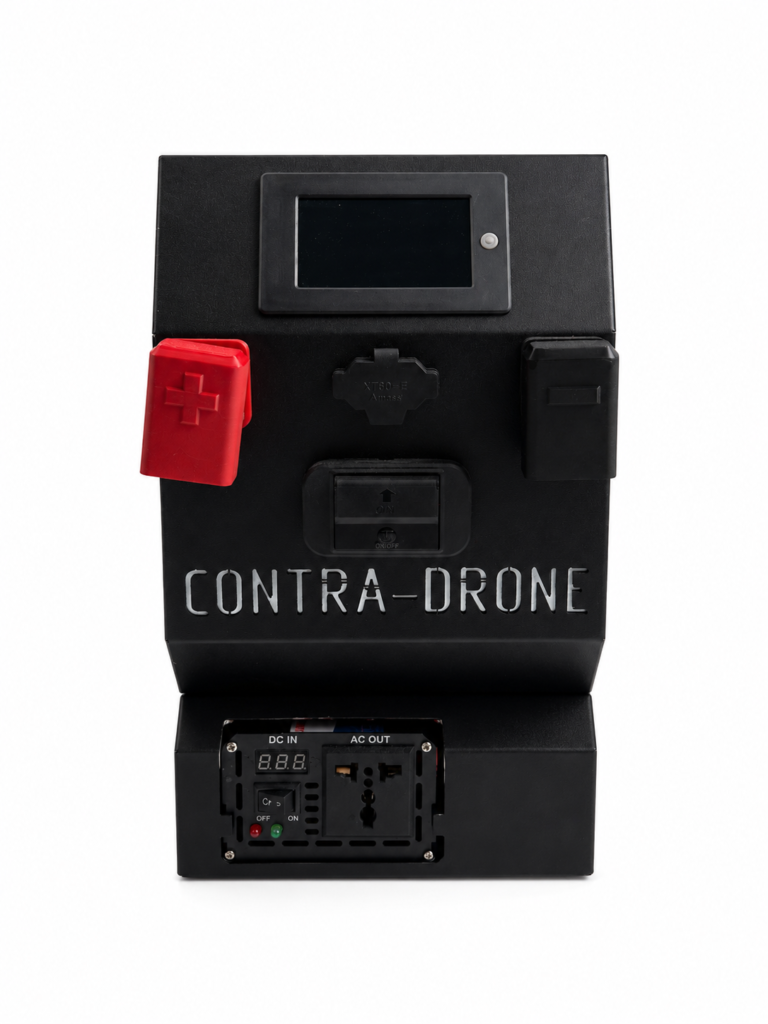

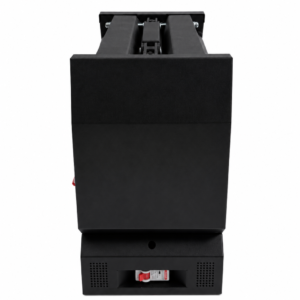

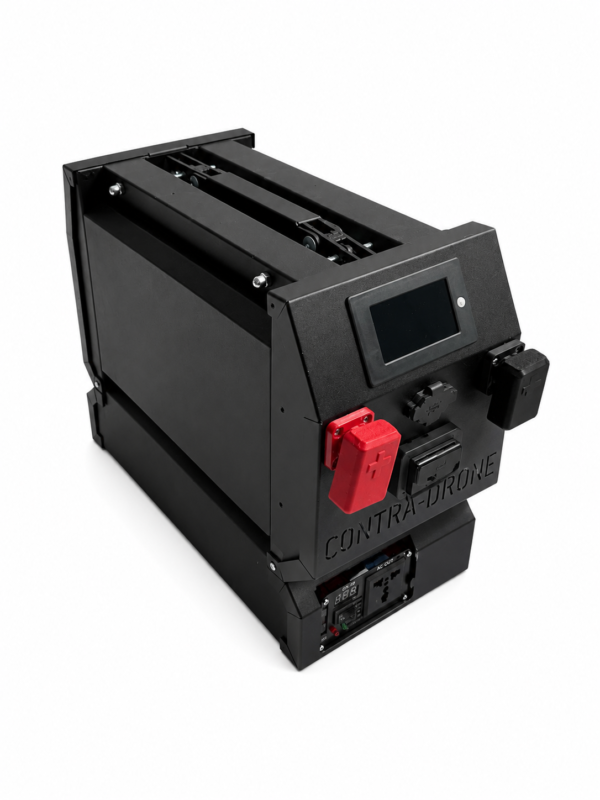

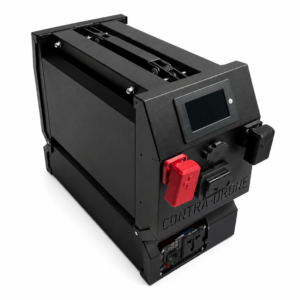

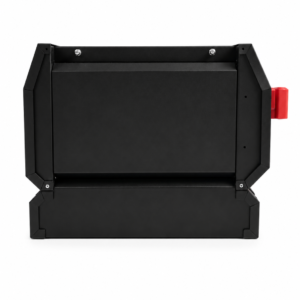

Вattery 105Ah + inverter
We can individually adapt the module, frequency range, antennas and other technical specifications according to your request
Device description
The Contra-drone 105Ah battery + inverter — an autonomous energy complex for powering electronic warfare systems, tactical equipment and field workstations.
This mobile solution combines a high-capacity 105Ah battery and a powerful inverter, creating a stable source of alternating and direct current in conditions where there is no access to a stationary power grid. The kit guarantees long-term operation of Contra-drone equipment and third-party systems at forward positions, during trips or long missions.
Advantages of the complex:
1. Complete autonomy — the inverter converts battery energy into a stable 220V current to power any tactical equipment.
2. The 105Ah capacity ensures many hours of operation of electronic warfare systems, repeaters, monitoring stations and computer equipment.
3. Compatible with all Contra-drone systems, including Anti-Mavic, Anti-FPV, detectors and antenna-transmitting modules.
4. Overload and short circuit protection, which guarantees safety for both the equipment and the operator.
5. High inverter efficiency, which minimizes energy loss and increases the duration of operation from a single charge.
Design features:
1. Reinforced battery case – resistant to shock, vibration and moisture.
2. Inverter with a pure sine wave, which allows you to power even sensitive electronics.
3. Convenient terminals and connection interfaces for quick turn-on in the field.
4. Effective inverter cooling system for stable operation under load.
5. Possibility of installation in a case or tactical container, which simplifies transportation.
Advantages of use:
1. Operation of electronic warfare systems “in the field” without generators and external power.
2. Mobility – the kit is easily portable, can be used in dugouts, shelters, transport or in open areas.
3. Long battery life, necessary for assault groups, mobile brigades and observation posts.
4. Stable power supply, which is critically important for complex radio-electronic systems.
The Contra-drone 105Ah battery + inverter – a reliable field power module for those who have to work for a long time, quietly and uninterruptedly.
Created for the front line. Developed in Ukraine.
Additional Interfaces:
Dual USB Charging Ports (simultaneous charging of 2 devices)
PD Type-C (1 port) – 30 W
Quick Charge 3.0 USB-A (1 port) – 18 W
Output Voltage/Current: 12V/1.5A; 9V/2A; 5V/3A.
Specifications
Key technical functions of the device
| Діапазон частот | 105Ah |
| Діапазон частот | Availability of an inverter |
| Battery type | LiFePO4 |
| Capacity | 105 Ah / 2688 Wh |
| Connection connectors | xt90E-F (female), M8 bolts |
| 66W 3-port USB charger that supports simultaneous charging of 3 devices | 2 Quick Charge 3.0 USB-A ports with 18W each and 1 PD Type-C port with 30W |
| Nominal voltage | 25.6V |
| Charging voltage | minimum - 21.6V, maximum (charger voltage) - 29.2V |
| Pure sine wave inverter 220V 50Hz | |
| Rated long-term tested power - 1kW | |
| Short-term power for 2 seconds (at the moment of starting the engine or connecting the switching power supply/charging unit) - 2kW | |
| Charging current through M8 | standard - 50A, maximum - 100A |
| Charging current through M8 | standard long-term nominal - 100A, maximum short-term (up to 2 seconds) - 300A |
| Long-term (rated) discharge or charge current through the xt90 connector | 45A |
| Short-term maximum discharge current through the xt90 connector | 90A |
| Resource, number of cycles | 3500 |
| Minimum operating discharge temperature | -20°C |
| Maximum operating discharge temperature | 50°C |
| Minimum charging temperature | 3°C |
| Maximum charging temperature | 50°C |
| Weight | 22.5 kg |
| Overall dimensions | 360x240x180 mm |
| Battery Charger |
Package contents
In the standard kit: 2 items
Battery
1 unitBattery Charger
1 unit
